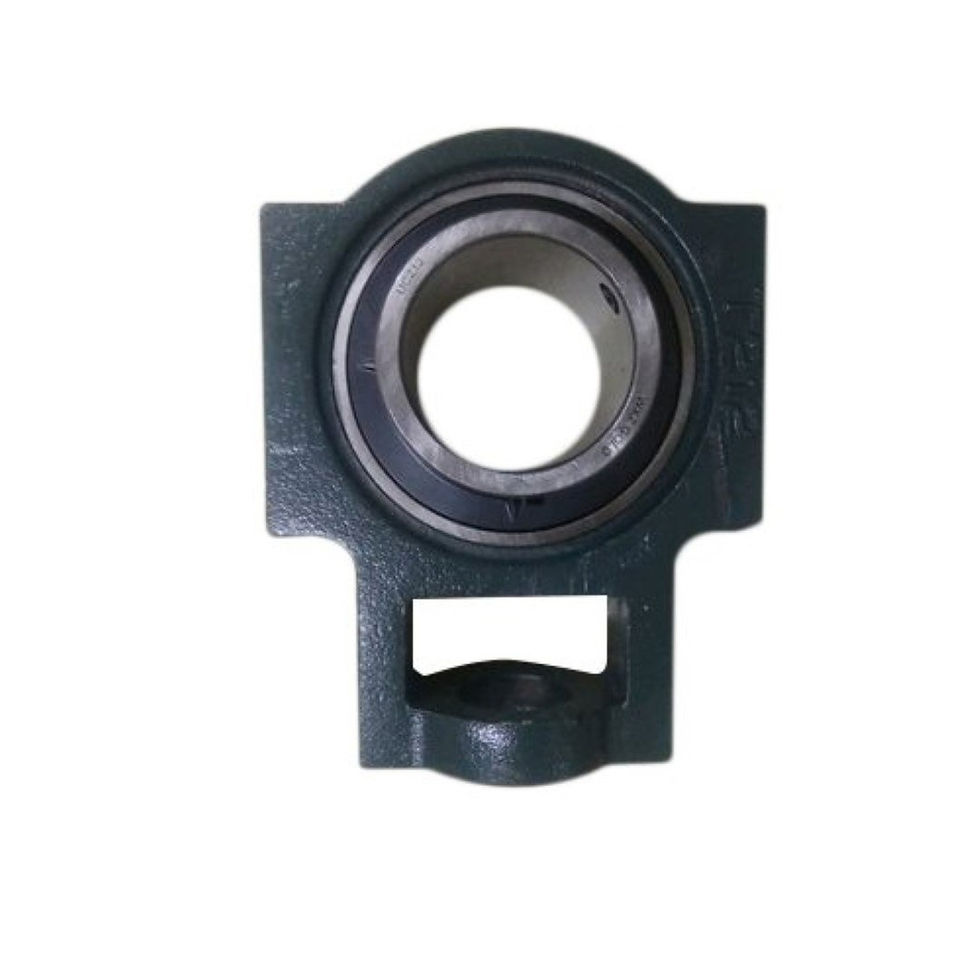

Discover Pillow Block Bearing UTC 12, engineered for maximum performance, durability, and easy installation. This high-precision bearing unit comes with a cast iron housing that ensures stability under heavy loads.
Perfect for industrial machinery, conveyor systems, agricultural equipment, and automation setups, the UTC 12 pillow block bearing provides smooth operation, low maintenance, and long service life.ā Features:
High-grade chrome steel bearing for superior wear resistance
Pre-lubricated design for minimal maintenance
Easy mounting with solid cast iron pillow block housing
Interchangeable with popular UCP series bearings
š¦ Applications:
Machinery | Conveyor Systems | Pumps | Agricultural Equipment | Textile Machines
Order Pillow Block Bearing UTC 12 online at the best price in India, with trusted quality and fast shipping from Ambay Bearing & Machinery.
Dimensions
| Shaft diameter | 60 mm |
| Housing overall width | 64 mm |
| Bearing width, total | 65.1 mm |
Performance
| Basic dynamic load rating | 52.7 kN |
| Basic static load rating | 36 kN |
| Limiting speed | 2 700 r/min |
| Note | Limiting speed with shaft tolerance h6 |
Properties
| Housing type | Take-up |
| Retaining feature, inner ring | Set screws |
| Bore type | Cylindrical |
| Rubber seating ring | Without |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing type | Contact, standard |
| Sealing, unit | Optional end cover |
| Lubricant | Grease |
| Relubrication hole | With |
| Grease fitting | With |
Logistics
High-Quality Pillow Block Bearing UTC 12 | UCP Housing Unit for Industrial Machi
Compliance with standard JIS
Purpose specific For material handling applications
Material, housing Cast iron
Sealing, bearing Seal and flinger on both sides
Sealing type, bearing Contact, standard
Sealing, unit Optional end cover
Coating Without
Dimensions
d 60 mm
Bore diameter d1 ā77 mm
Shoulder diameter of inner ring A 64 mm
Overall width A1 22 mm
Width of piloting groove A2 42 mm
Width of flange in which piloting grooves are provided A5 39 mm
Standout of end cover B 65.1 mm
Width of inner ring B4 11 mm
Distance from locking device side face to thread centre H 146 mm
Overall height H1 130 mm
Distance between bottoms of piloting grooves H2 102 mm
Height of attachment end L 194 mm
Overall length L1 119 mm
Distance from attachment end face to centre line of spherical seat diameter L2 19 mm
Length attachment end L3 102 mm
Length of piloting groove N 35 mm
Diameter of attachment bolt hole N1 32 mm
Length of attachment slot N2 64.5 mm
Height of attachment slot s1 39.7 mm
Distance from locking device side face to raceway centre THREADED HOLE RG 1/8-27 NPT
Housing thread for the grease fitting R1 4 mm
Axial position of the housing thread RĪ± 30 Ā°
Angular position of the housing thread GREASE FITTING DN 6.589 mm
Diameter of head sphere of grease fitting SWN 11.11 mm
Hexagonal key size for the grease fitting GN 1/8-27 NPT
Thread of grease fitting
