Dimensions
| Attachment bolt diameter | 14 mm |
| Shaft diameter | 45 mm |
| Centre height (pillow block) | 54 mm |
| Housing overall width | 51 mm |
| Centre distance between bolt holes | 146 mm |
| Bearing width, total | 49.2 mm |
Performance
| Basic dynamic load rating | 32.5 kN |
| Basic static load rating | 20.4 kN |
| Limiting speed | 3 400 r/min |
| Note | Limiting speed with shaft tolerance h6 |
Properties
| Housing type | Pillow block |
| Number of bolt holes for fasteners | 2 |
| Fastening bolt hole type | Plain |
| Retaining feature, inner ring | Set screws |
| Bore type | Cylindrical |
| Rubber seating ring | Without |
| Material, housing | Cast iron |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing type | Contact, standard |
| Sealing, unit | Without |
| Lubricant | Grease |
| Relubrication hole | With |
| Grease fitting | With |
Logistics
| Product net weight | 2.28 kg |
| eClass code | 23-05-16-02 |
| UNSPSC code | 31171536 |

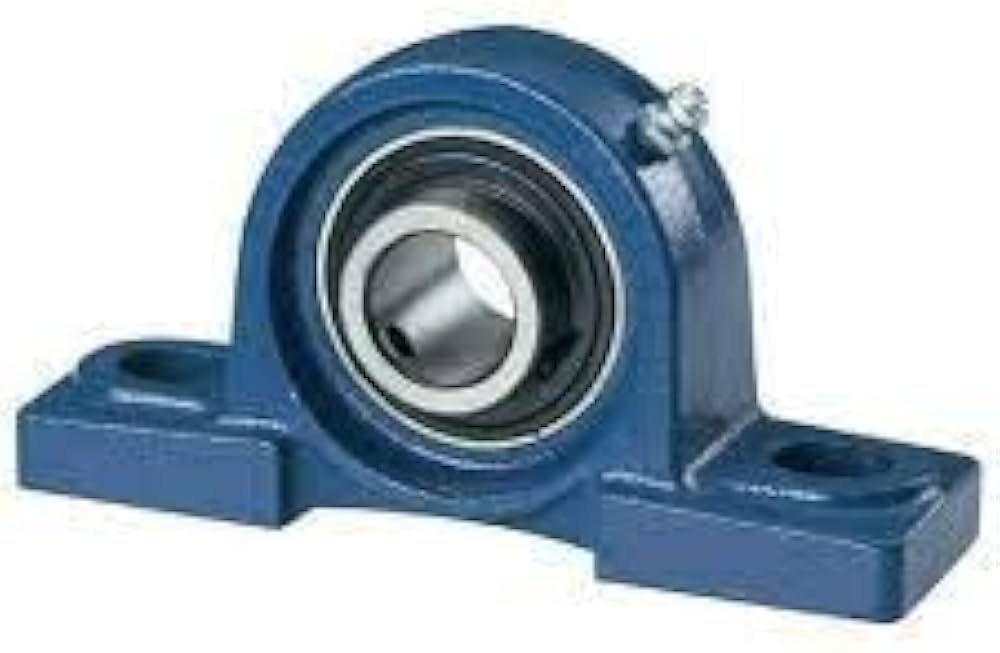

PILLOW BLOCK BEARING UNIT UCP 209
₹10.00Price
Dimensions
Attachment bolt diameter 14 mm Shaft diameter 45 mm Centre height (pillow block) 54 mm Housing overall width 51 mm Centre distance between bolt holes 146 mm Bearing width, total 49.2 mm Performance
Basic dynamic load rating 32.5 kN Basic static load rating 20.4 kN Limiting speed 3 400 r/min Note Limiting speed with shaft tolerance h6 Properties
Housing type Pillow block Number of bolt holes for fasteners 2 Fastening bolt hole type Plain Retaining feature, inner ring Set screws Bore type Cylindrical Rubber seating ring Without Material, housing Cast iron Material, bearing Bearing steel Coating Without Sealing, bearing Seal and flinger on both sides Sealing type Contact, standard Sealing, unit Without Lubricant Grease Relubrication hole With Grease fitting With Logistics
Product net weight 2.28 kg eClass code 23-05-16-02 UNSPSC code 31171536
