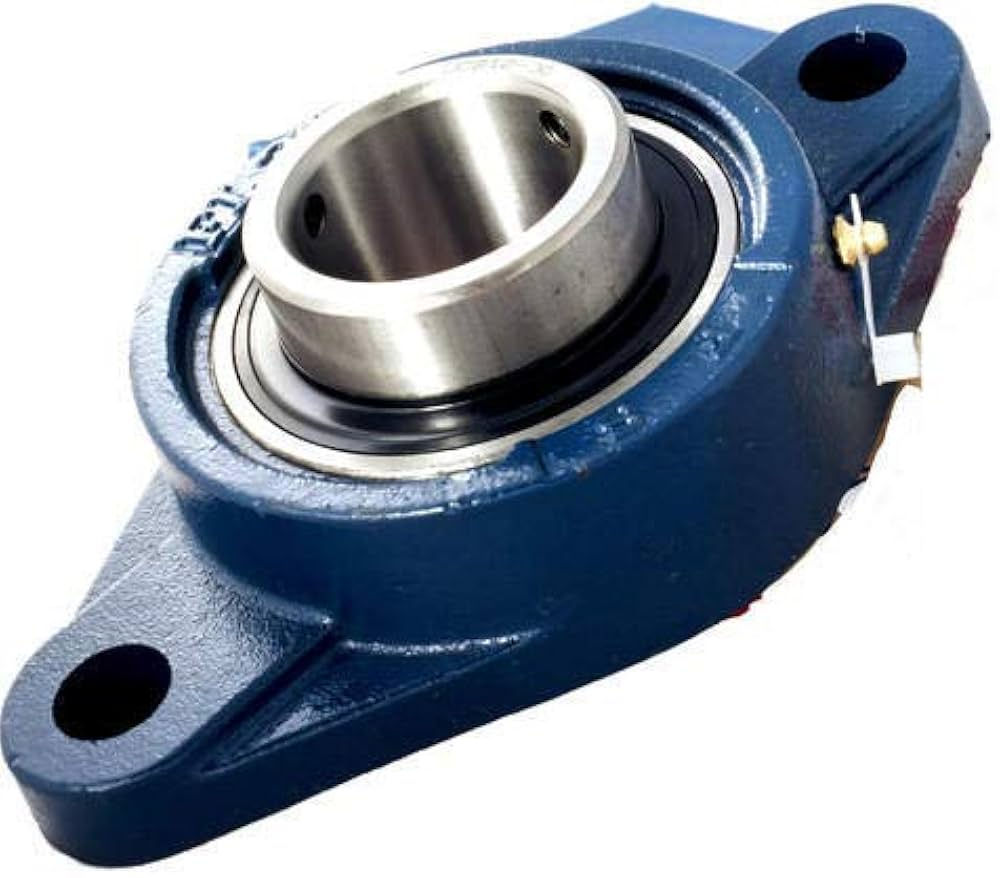

The UCFL 206 Diamond Flange Ball Bearing from Ambay Bearing & Machinery is engineered for high performance in demanding industrial environments. Featuring a cast iron housing and a chrome steel insert, this bearing ensures durability and reliability. Its diamond-shaped flange design allows for secure mounting, making it ideal for applications such as HVAC systems, conveyor systems, and agricultural machinery.
UCFL 206 Diamond Flange Ball Bearing Flanged Ball Bearing Unit Mounted Ball Bearing Cast Iron Flange Bearing Industrial Ball Bearings Ambay Bearing & Machinery Pillow Block Bearing Bearing Units UCFL Series Bearings
Dimensions
| Bore diameter | 30 mm |
| Outside diameter | 62 mm |
| Width | 16 mm |
Performance
| Basic dynamic load rating | 20.9 kN |
| Basic static load rating | 16.3 kN |
| Reference speed | 20 000 r/min |
| Limiting speed | 12 000 r/min |
Properties
| Filling slots | With |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Matched arrangement | No |
| Radial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
Logistics
| Product net weight | 0.207 kg |
| eClass code | 23-05-08-01 |
| UNSPSC code | 31171504 |
Discover the UCFL 206 Diamond Flange Ball Bearing at Ambay Bearing & Machinery
Dimensions
d 30 mm
Bore diameter D 62 mm
Outside diameter B 16 mm
Width d1 ≈40.36 mm
Shoulder diameter D2 ≈54.06 mm
Recess diameter r1,2 min.1 mm
Chamfer dimension Abutment dimensions
da min.35.6 mm
Diameter of shaft abutment Da max.56.4 mm
Diameter of housing abutment ra max.1 mm
Radius of shaft or housing fillet Calculation data
Basic dynamic load rating C 20.9 kN
Basic static load rating C0 16.3 kN
Fatigue load limit Pu 0.695 kN
Reference speed 20 000 r/min
Limiting speed 12 000 r/min
Minimum load factor kr 0.04
